XERSEK

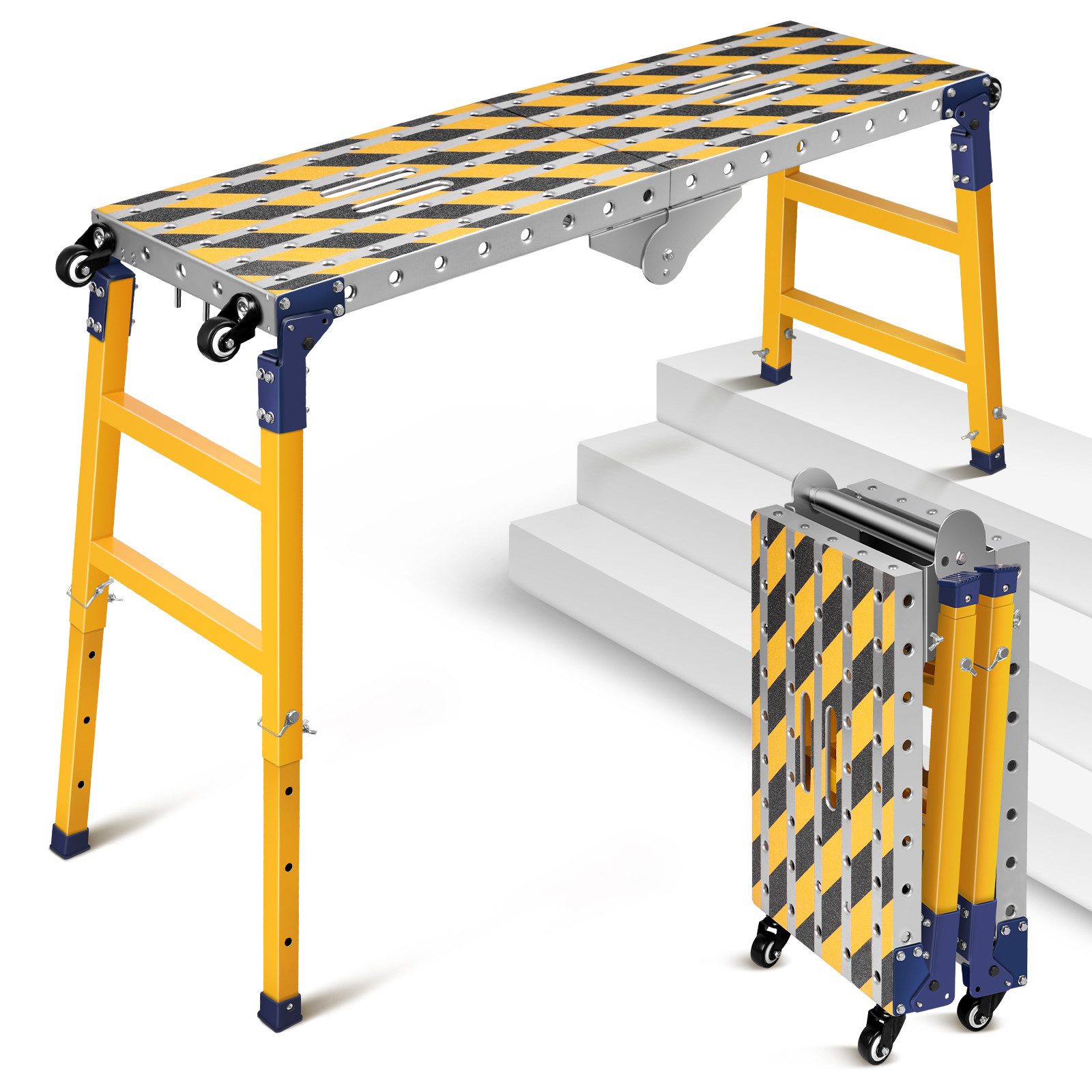

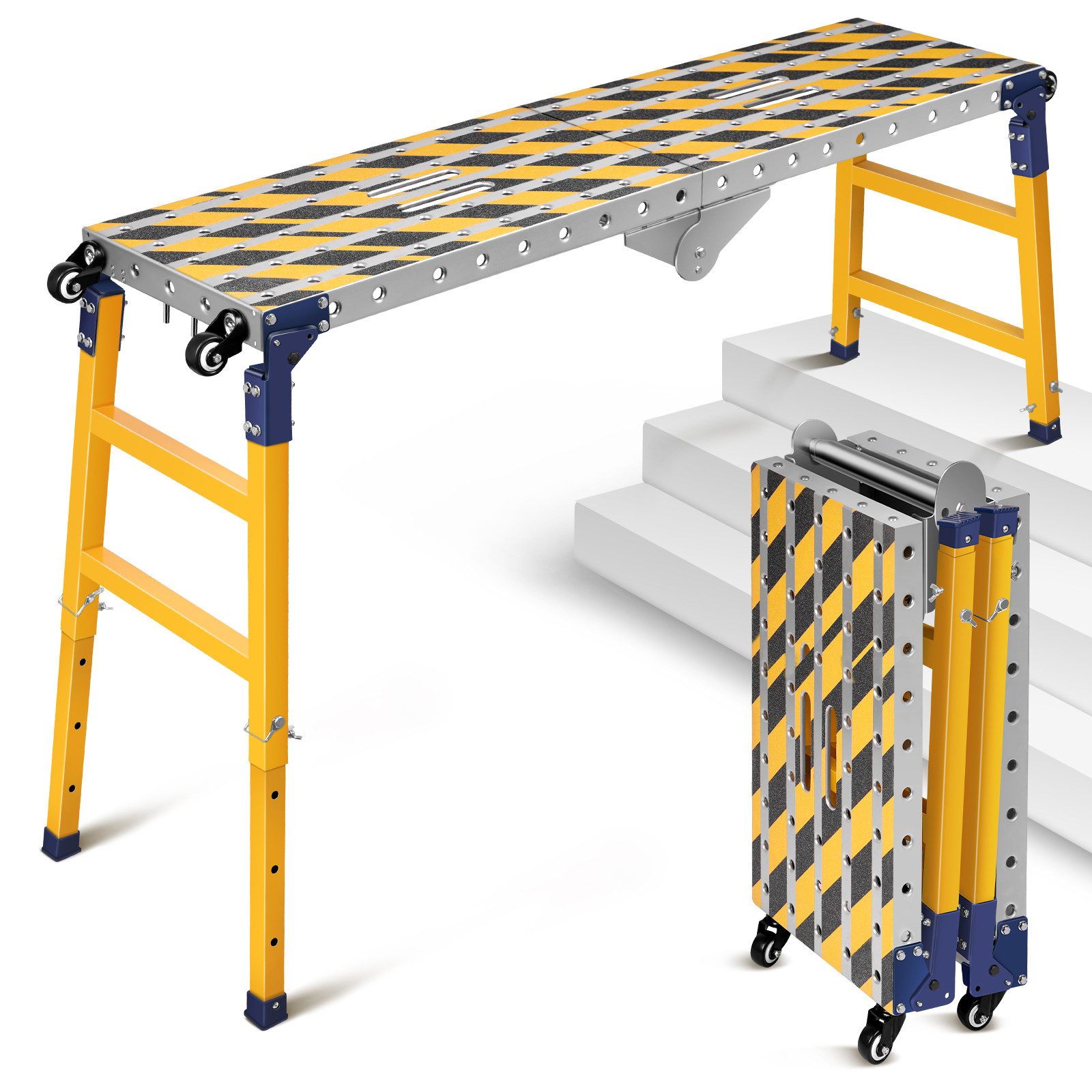

Arbeitsplattform 2in1 Stahl Klappleiter Fahrgerüst Multigerüst bis 500kg Höhe 70–110cm

(Mehrzweckleiter Klappgerüst Höhenverstellbare Ausziehleiter auf Rollen), Multifunktionalität Für Bau Garten Reparatur

... mehr

Multifunctionality: This portable work platform can serve as a welding table, scaffolding, or height-adjustable ladder (up to 43.3 inch).

High Load Capacity: With a maximum load capacity of 1102.31lbs, the platform is suitable for heavy-duty applications.

Safety Features: Adjustable legs with locking pins and securing screws ensure stability.

Mobility: Four smooth-rolling casters allow effortless transportation.

Material Quality: Constructed from durable alloy steel with anti-slip stepping surfaces.

Multifunctionality

This portable work platform can serve as a welding table, scaffold, or height-adjustable ladder (max. height: 43.3 inch).

High Load Capacity

• Supports up to 1,102.31 lbs (ideal for heavy-duty applications).
• Static Overload Test: 1,653 lbs (1.5× rated load) for 60 minutes – deformation 0.047 inches (permissible limit: 0.079 inches).
• Dynamic Fatigue Test: 20,000 cycles at 661 lbs (simulating 15 years of use), material fatigue <0.03% (strain sensor monitored).

Safety Features

• Adjustable legs with safety pins/locking screws.
• Reinforced Clamps: Stainless steel (DIN 938 Class 8.8), durability ≥10,000 cycles (vs. DIN 267 threshold: 5,000).

Mobility

• Swivel Casters: High-carbon steel wheels (single-wheel load: 331 lbs), rolling resistance ≤3.37 lbf (DIN EN 12529 limit: 6.74 lbf).

Material Specifications

• Frame: Alloy steel 42CrMo4 (DIN 1.7225), nickel-plated (0.0008 inches thick, corrosion resistance Class 10 per DIN EN ISO 9227).
• Leg: Alloy steel 42CrMo4 (DIN 1.7225), epoxy-coated (0.004 inches thick, Class C4 per ISO 12944, validated by 1,000h salt spray test ASTM B117).
• Tread Surface: Alumina-PVC composite (roughness Rz=0.0024 inches, compliant with DIN 51130:2022).

Height Adjustment: 27.6–43.3 inch in 4inch increments
